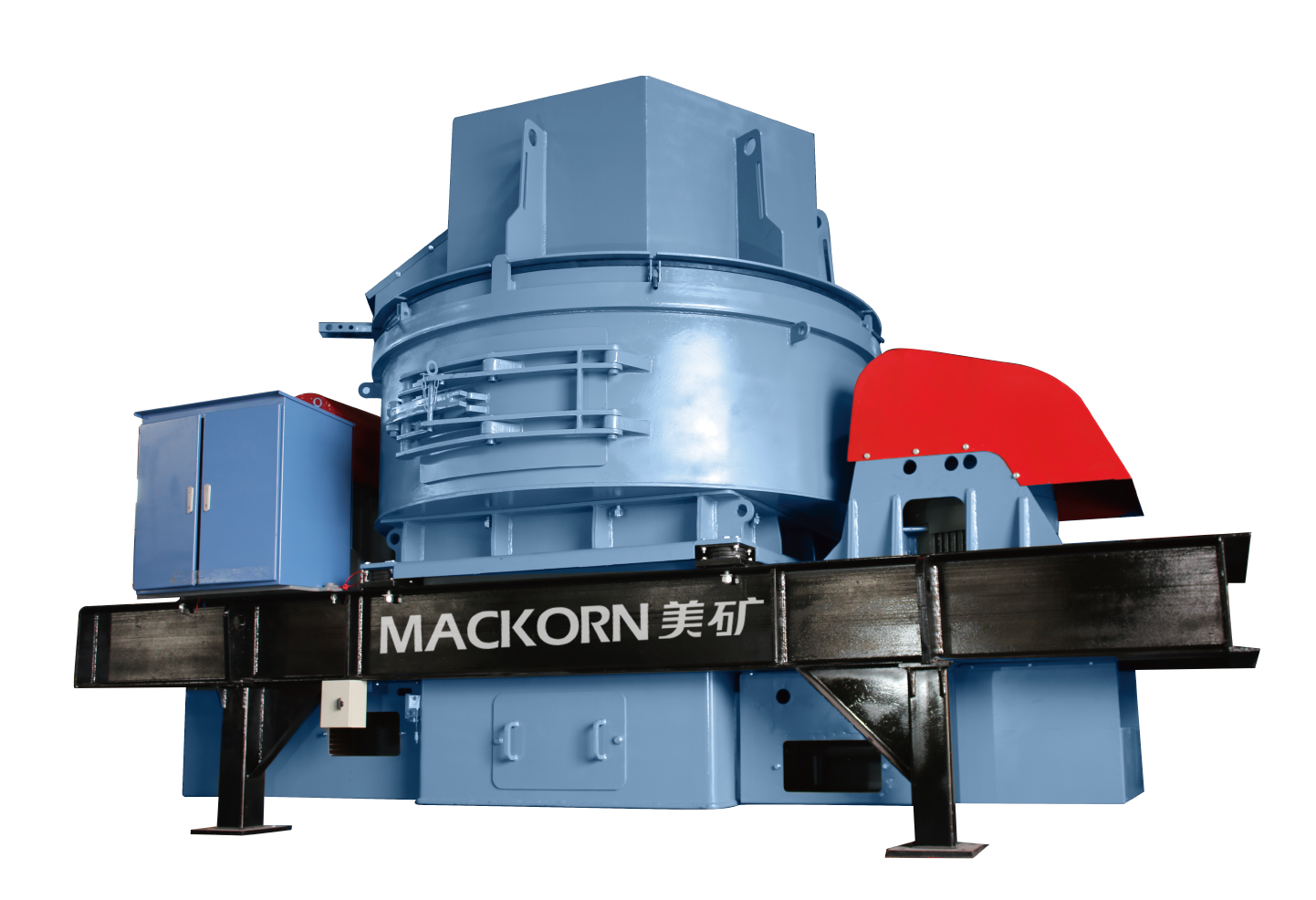

Vertical Shaft Impact Crusher

Vertical Shaft Impact Crusher

The gradation can be maintained stable, because the wear parts so not crusher the minerals, the metal contamination of minerals is extremely low, the performance is reliable, the vibration is small. Meanwhile of increasing the capacity.it a

产品特点:

进料粒度:

生产能力:

适用物料:

我要租

分享

热线电话021-52300892

Vertical Shaft Impact Crusher

        The gradation can be maintained stable, because the wear parts so not crusher the minerals, the metal contamination of minerals is extremely low, the performance is reliable, the vibration is small. Meanwhile of increasing the capacity.it also maximizes to shorten the shut-down time of equipment maintenance.



CVS Series of VSI
Model CVS711 CVS718 CVS825 CVS837 CVS850
Max Feeding (mm) 50 50 55 55 55
Weight (kg) 9505 9505 11780 14830 14830
Max Motor Power (kW) 110 185 250 2 X 185 2 X 250
Capacity (t/h) 50-120 120-190 190-253 250-445 445-605



MVS Series of VSI
Model Size(MM) Power(PW) Weight(KG) Max feed size(MM) Speed(RPM) capacity(MTPH)
MVS2000-R 2100 250 11900 40 800-1800 150-250
MVS2000-R-D 2100 150×2 15400 50 800-1800 100-300
MVS2000-S 2100 350 13900 40 800-1800 100-250
MVS2000-S-D 2100 200×2 15980 40 800-1800 100-400
MVS2500-R 2400 315 12840 50 800-1800 100-350
MVS2500-R-D 2400 250×2 15600 40 800-1800 150-350
MVS2500-S 2400 315 15840 63 800-1800 100-350
MVS2500-S-D 2400 250×2 18600 63 800-1800 180-450
