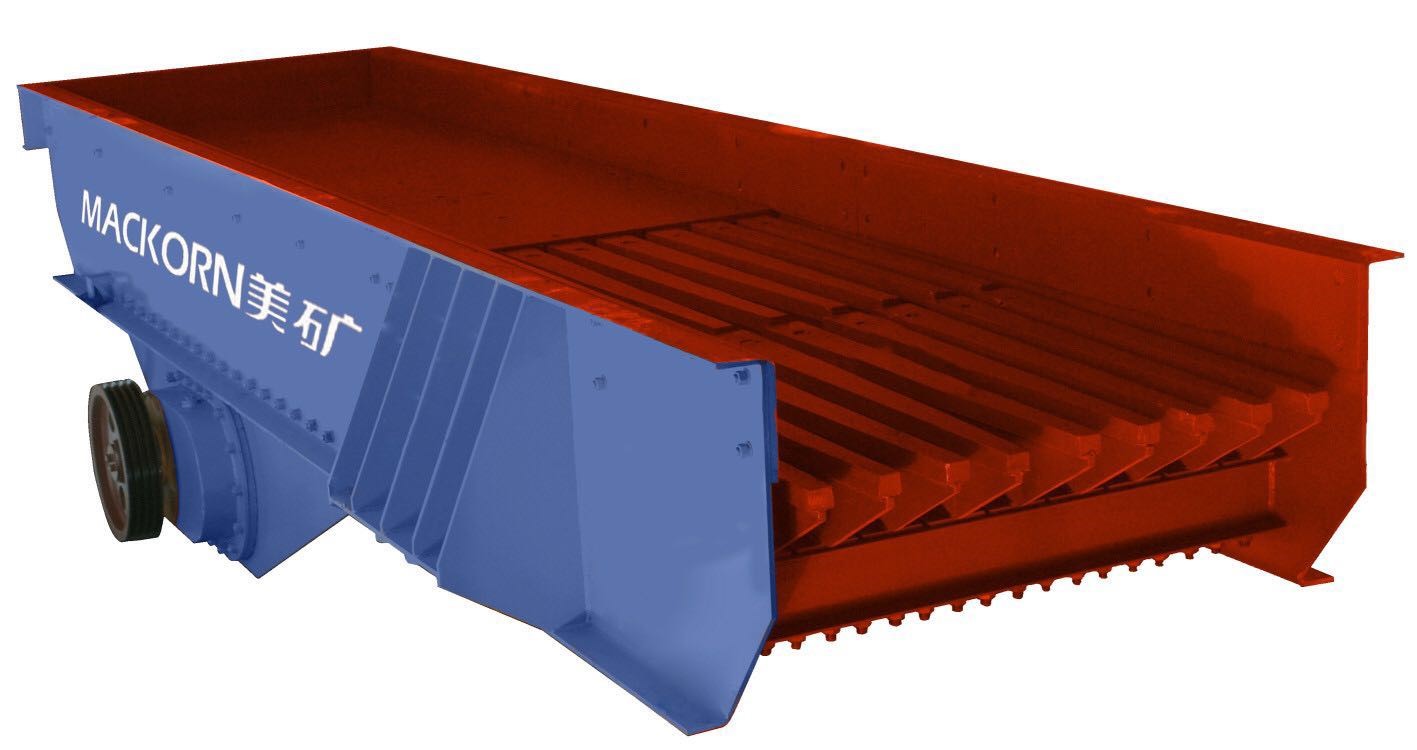

Vibrating Grizzly Feeder

Vibrating Grizzly Feeder

Vibrating Grizzly Feeder Using the principle design of the eccentric shaft vibration producing vibration force,mainly used for coarse crushing crusher before feeding. Smooth vibration,continuous and even feeding ,so as to avoid crash phenom

产品特点:

进料粒度:

生产能力:

适用物料:

我要租

分享

热线电话021-52300892

Vibrating Grizzly Feeder


  1. Using the principle design of “the eccentric shaft vibration producing vibration force”,mainly used for coarse crushing crusher before feeding.
  2. Smooth vibration,continuous and even feeding ,so as to avoid crash phenomenon and prolong the service life of apparatus.
  3. When feeding processing,preliminary screening fine material increase crushing efficiency.
  4. Grid gaps can be adjustable,prevent the stuff from jamming.
  5. Selectable feeding volume of speed- adjustable motor without searting the motor frequently.




Vibrating  Grizzly Feeder
Model Max Feeding granularity(mm) Rotating Speed(r/Min) Capacity(t/h) Power(Kw) Measurement(mm)
ZSW380×95 500 ~800 80~150 11 3970×2259×1880
ZSW420×110 580 ~800 120~240 15 4292×2519×2003
ZSW600×130 700 ~800 140~450 22 6124×2863×2051
ZSW600×150 800 500~850 150~700 30 6271×2369×2698
ZSW600×180 1000 600~850 180~950 37 6375×2653×2913
